Berminghammer BRC 35 System – ST-266
Details
| Condition | Used |
|---|---|
| Category | Pre-owned-Piling-Drill-Rigs |
| Make | |
|---|---|
| Year | 0000 |
Description
Berminghammer BRC 35 System
Reverse circulation Drilling System
Drill torque – 35,000 ft-lbs
Drill depth – Max 40’(tooling on hand)
Drill diameter – 610mm (tooling on hand)
Included in the package:

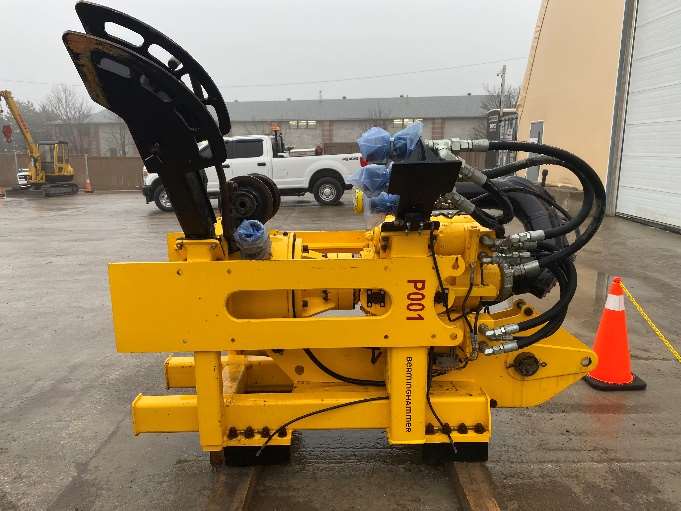

– BRC35 Rotary
– Upper Swivel Slide Assembly 3-axis
– Lower Torque Resistant Swivel Slide Assembly
– 25” Gate
– Parts / Operators Manual
– Joystick Control
– 6 pcs of 6″ x 20′ Hard/Wired Discharge Hose Assembly
– 25” Gate with Gibs
– 610/10MM N180 Pilot Bit
– 7 pcs of 609.9/19MM Ring Bit
– N180 18″ 240 Hex Hammer
– 18″ 240 Hex Pin x Box Shock Su (includes Hex for Shroud)
– 13-5/8″ X 6-1/4″ X 20′ SS – 9.4″ Hex Pin X Box – 13-5/8″ OD x 0.565 W RC Pipe
– Interchange 24″ X .750 Wall CA – 9.4 Hex Pin X 240MM Hex Box
– Air Manifold system
– Air oiler system
Contact for more details
