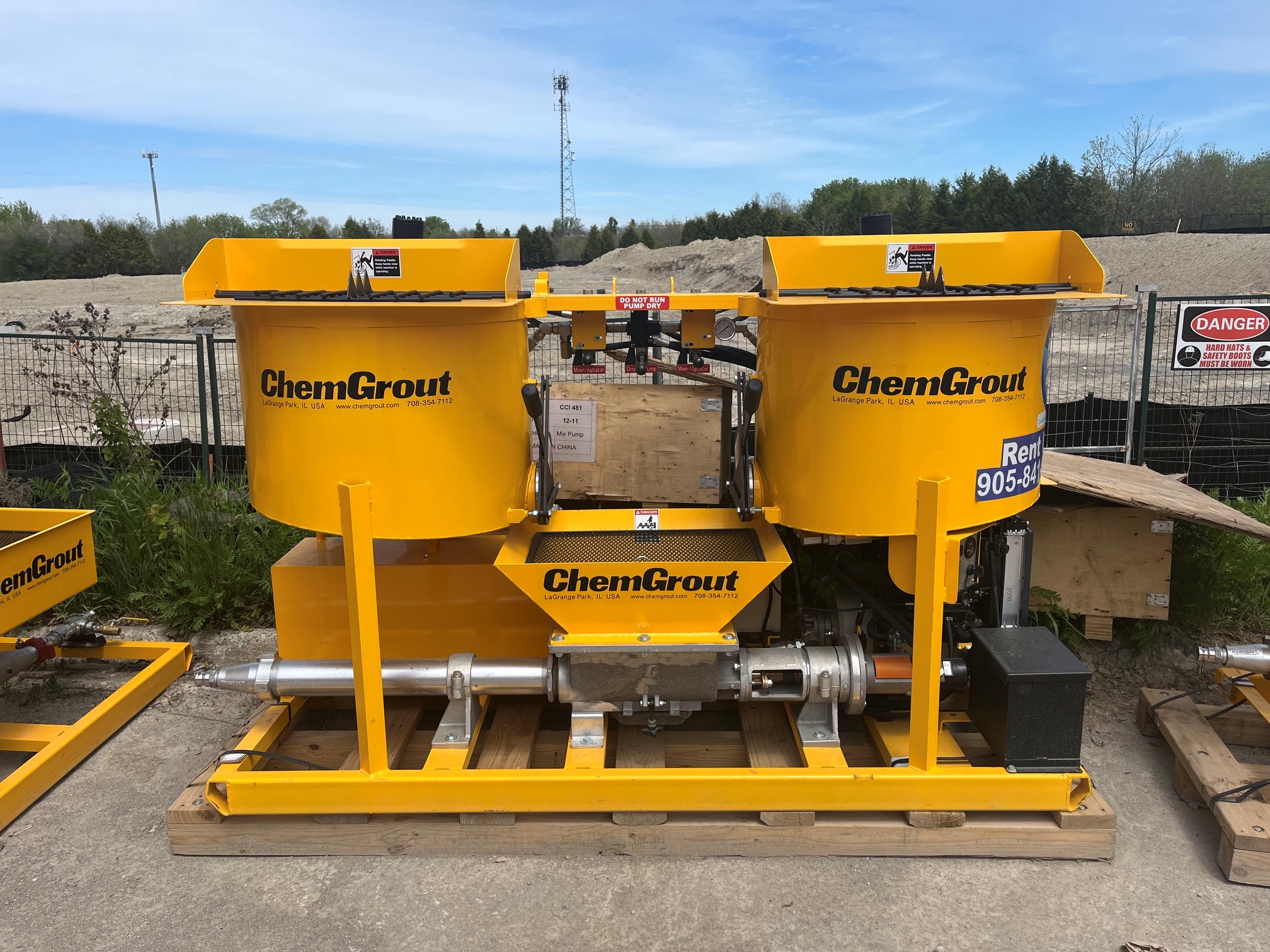

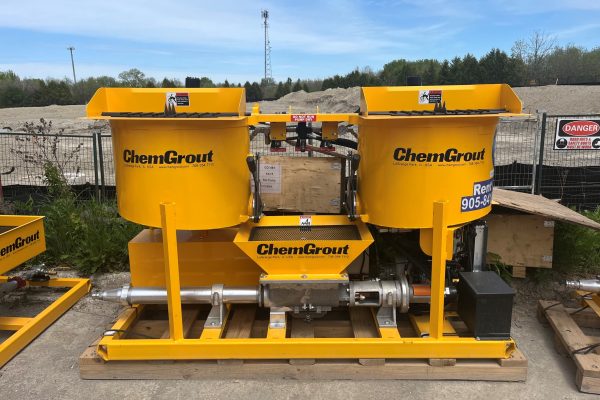

2026 CHEMGROUT CG500/3C6 Progressive Pump GROUT PLANT #88

Details

Description

Drive high-volume grouting with the CG-500 Versatile Series

When your jobs demand continuous output and fast mobilization, the ChemGrout CG-500 delivers. This balanced, all-in-one grout plant combines twin 70-gallon (265 L) high-shear mixers, a 15-gallon (57 L) holding hopper with internal auger, and a rugged open-throat progressing cavity pump—all on a single skid. Roll in, power up, and pump non-stop.

Why the CG-500 stands out

• Continuous production, zero bottlenecks: Twin mix tanks alternate feeding the hopper for uninterrupted pumping and maximized batch turnover.
• High output, smooth flow: Up to 20 gpm (76 lpm) with a non-pulsating, positive-displacement rotor–stator pump for consistent placement and finish quality.
• Real-world pressure: Standard max 174 psi (12 bar), with an optional 261 psi (18 bar) package for tougher pushes.
• Superior mixing: High-shear design thoroughly wets particles for uniform, pumpable grout and fewer line issues.
• One-skid efficiency: Mixer, hopper, and pump on a single 88″ x 34″ x 58″ footprint (Diesel variant 100″ L) for quick setup and easy moves on site.
• Broad material handling: Neat cement, sand/cement blends, and most commercial pre-bagged grouts.
• Power your way: Air, hydraulic, electric/hydraulic, gas/hydraulic, or diesel/hydraulic to match your fleet and site constraints.

Built for demanding work

• Core applications: Tunnels, shafts, dams, mines, tiebacks, soil anchors, piling encasements, rock grouting, well work, void filling, contact grouting, marine/underwater, slab undersealing and slabjacking, post-tensioning, precast, machine bases, and self-leveling underlayments.
• Dependable feed: 15-gallon holding hopper with internal auger keeps material blended and ready, reducing segregation and downtime.
• Easy maintenance: Quick-access cleanout port on the progressing cavity pump; straightforward service to keep production on schedule.

Key specs at a glance

• Maximum output: 20 gpm (76 lpm)
• Maximum pressure: 174 psi (12 bar), optional 261 psi (18 bar)
• Mix capacity: Two 70-gallon (265 L) tanks + 15-gallon (57 L) hopper
• Example power requirements/weights:
  • Air: 250 cfm @ 100 psi, approx. 1,100 lb, 88″ L x 34″ W x 58″ H
  • Hydraulic: 12 gpm @ 2,000 psi, approx. 1,050 lb, 88″ x 34″ x 58″
  • Electric/Hydraulic (3-phase): approx. 1,550 lb, 88″ x 34″ x 58″
  • Gas/Hydraulic (Honda 20 HP, electric start): approx. 1,425 lb, 88″ x 34″ x 58″
  • Diesel/Hydraulic (Kubota 14 HP, electric start): approx. 1,625 lb, 100″ x 34″ x 58″

7-88 CG500 3C6 Progressive Pump Diesel PO498 SN17869 March 19 2026 Full Specs
