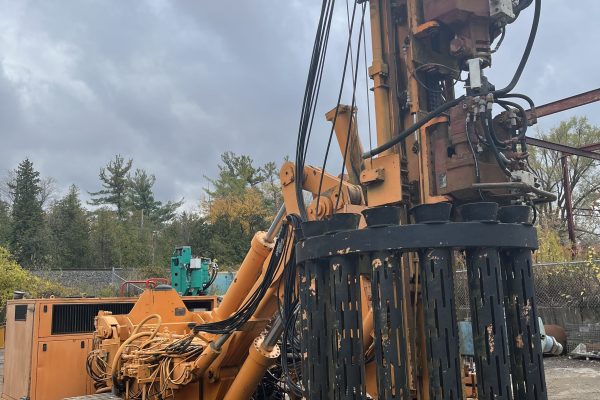

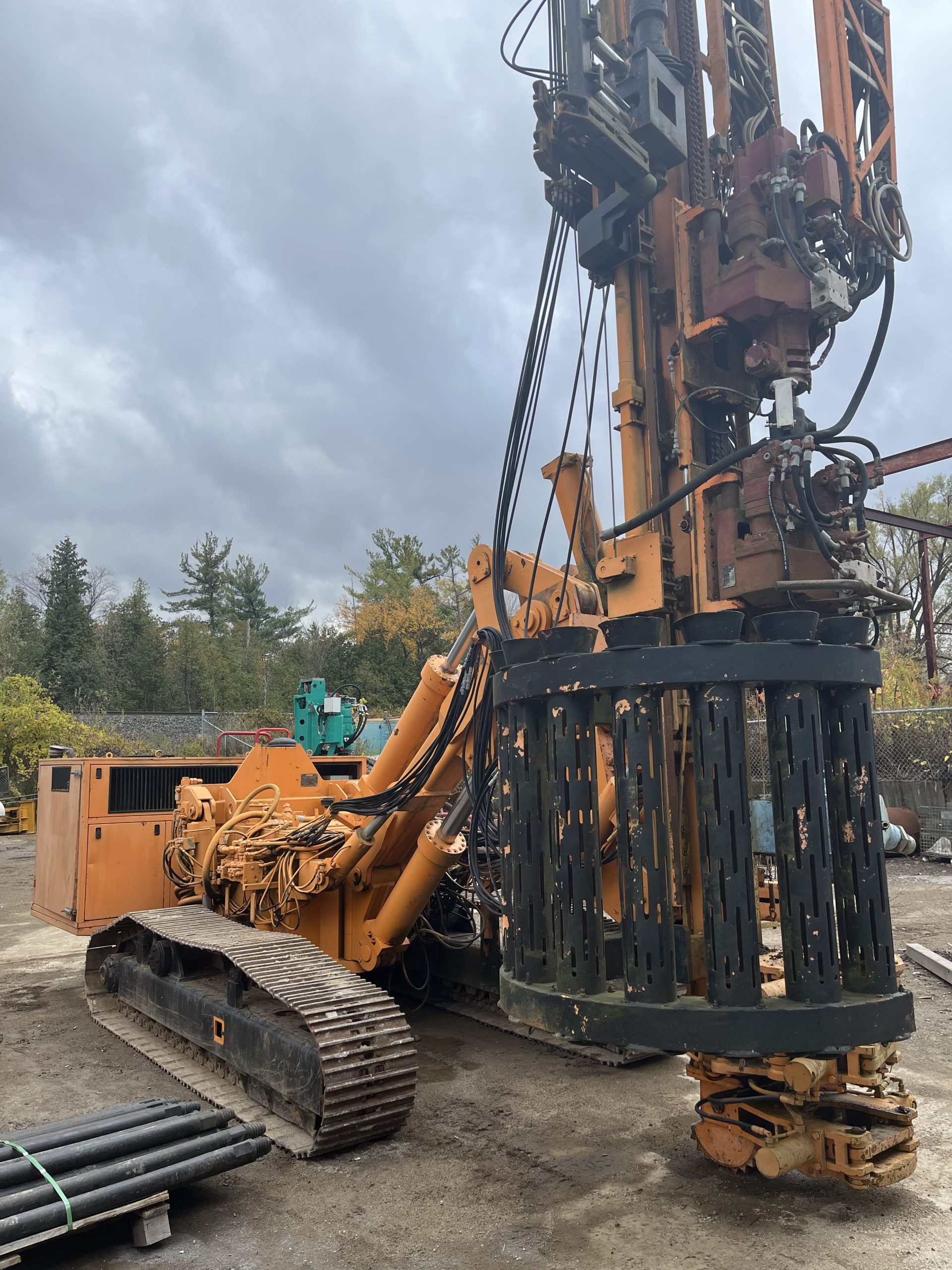

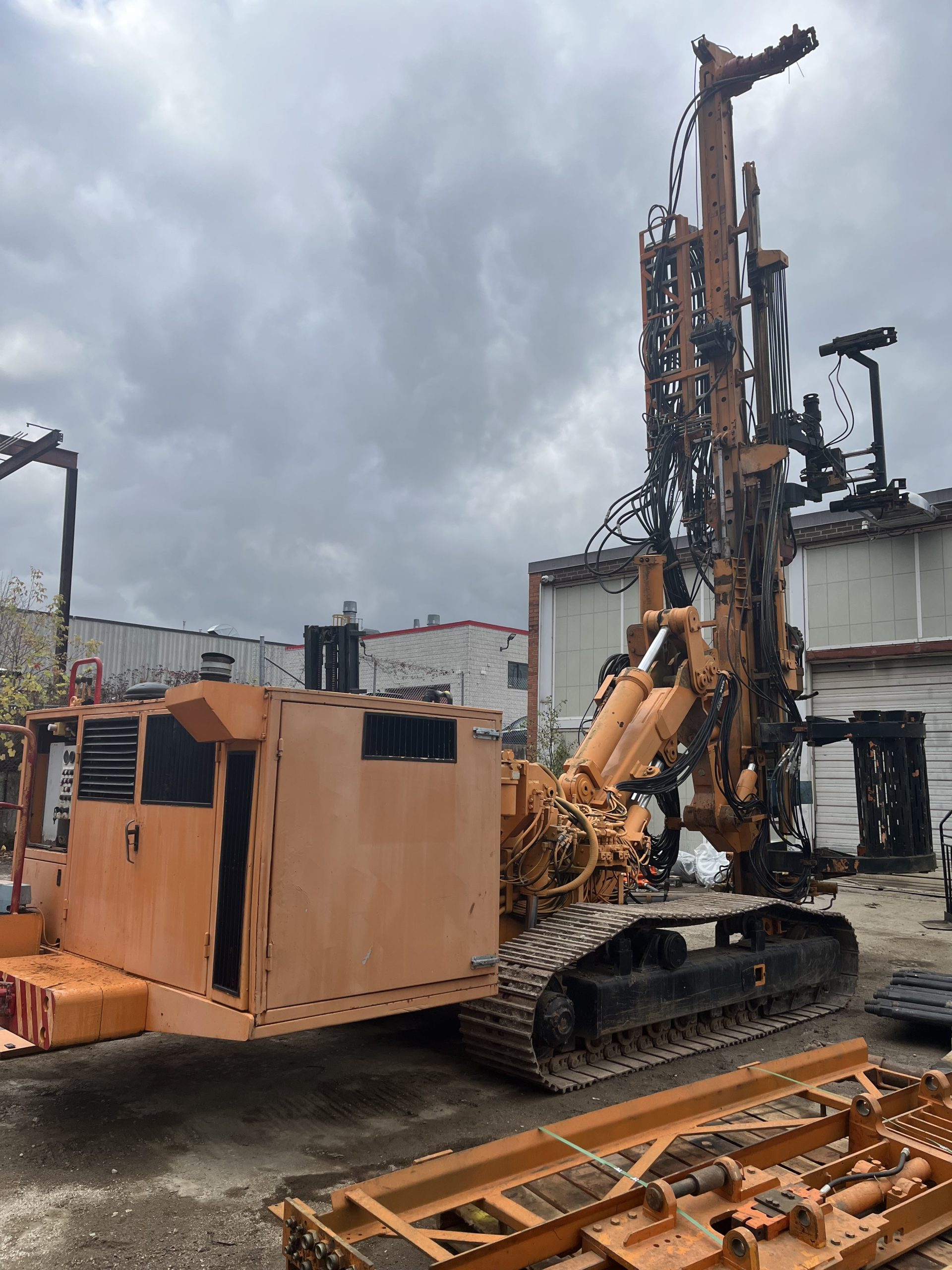

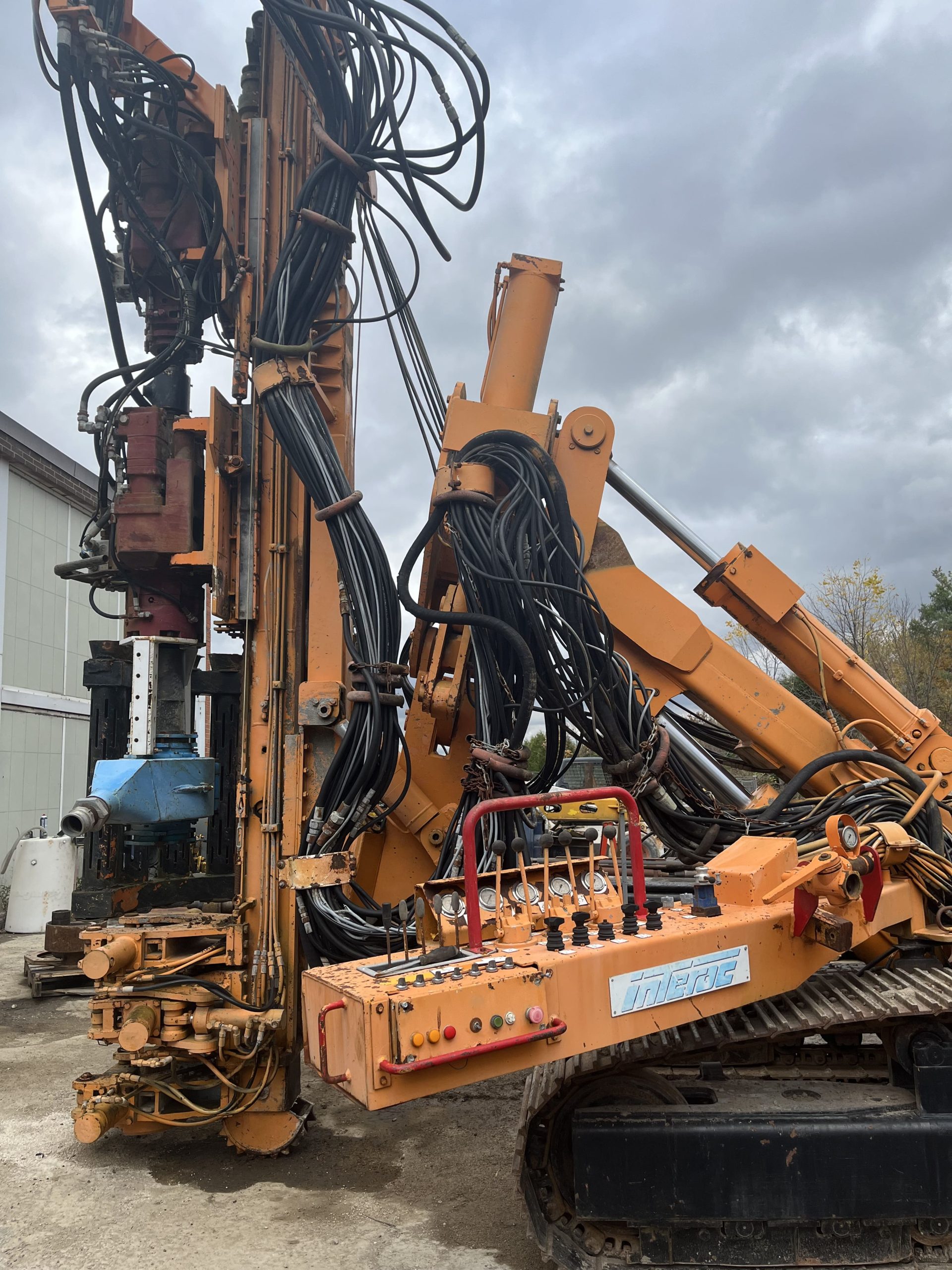

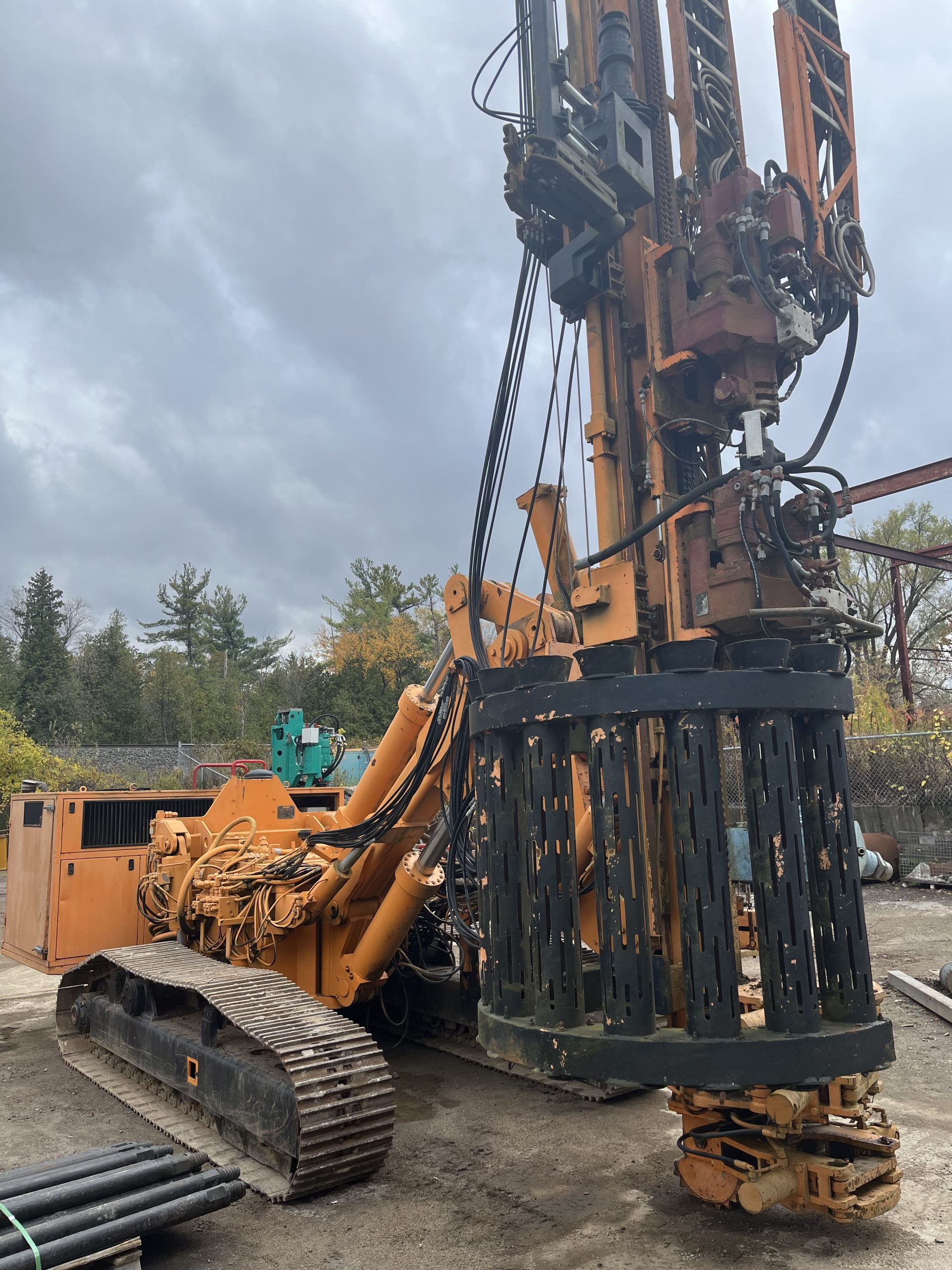

2001 Interoc AN160 and Bulk Lot of Tooling

Condition	Used
Year	2001

Details

Year	2001
Price	N/A

$100,o00 USD or best offer. No reasonable offer refused!

Drive engine Deutz BF 6M 1013 C; liquid cooled
229 hp at 2,300 rpm
Diesel tank capacity 92.5 gal
Pump output 2 x 71.3 + 6.3 gal/min
operating pressure 4,640 psi
Hydraulic tank capacity 211 gal
Hydraulic fluids mineral oils, biologically degradable oils
Length excl. driver’s stand 362 inch
Length excl. driver’s stand 376 inch
Width 102 inch
Height (in parking position) 118 inch
Weight 46,297 lbs
ground pressure 10.3 psi
Ground clearance 15.75 inch
Pendulum range of crawlers +18.5° / -11.5°
Travel speed 1.6 mph
Traction 44,512 lbf
Mast length 338.6 inch
Feed travel (single sled) 220.5 inch
Feed travel (double head) 170.1 inch
Feed force 26,977 lbf
Retraction force 26,977 lbf
Feed rate 0 – 23 foot/min
Retraction rate 23 foot/min
Rapid feed 0 – 197 foot/min
Rapid retraction 0 – 197 foot/min
Recommended hydraulic drifter B 2000 R
Recommended double head system DK 2000 / DK 1300
Twin Impact System (TIS) DK 2000 SH / B 1000 R
Recommended rod/casing magazine
Inner rod 7 x ∅5 inch Outer casing 7 x ∅ 6 inch
rod length (double head) 118.11 inch
Additional equipment radio remote control auxiliary winch displaceable sleds clamp/break device for up to ∅ 17,72 inch

FOB: Aurora, ON

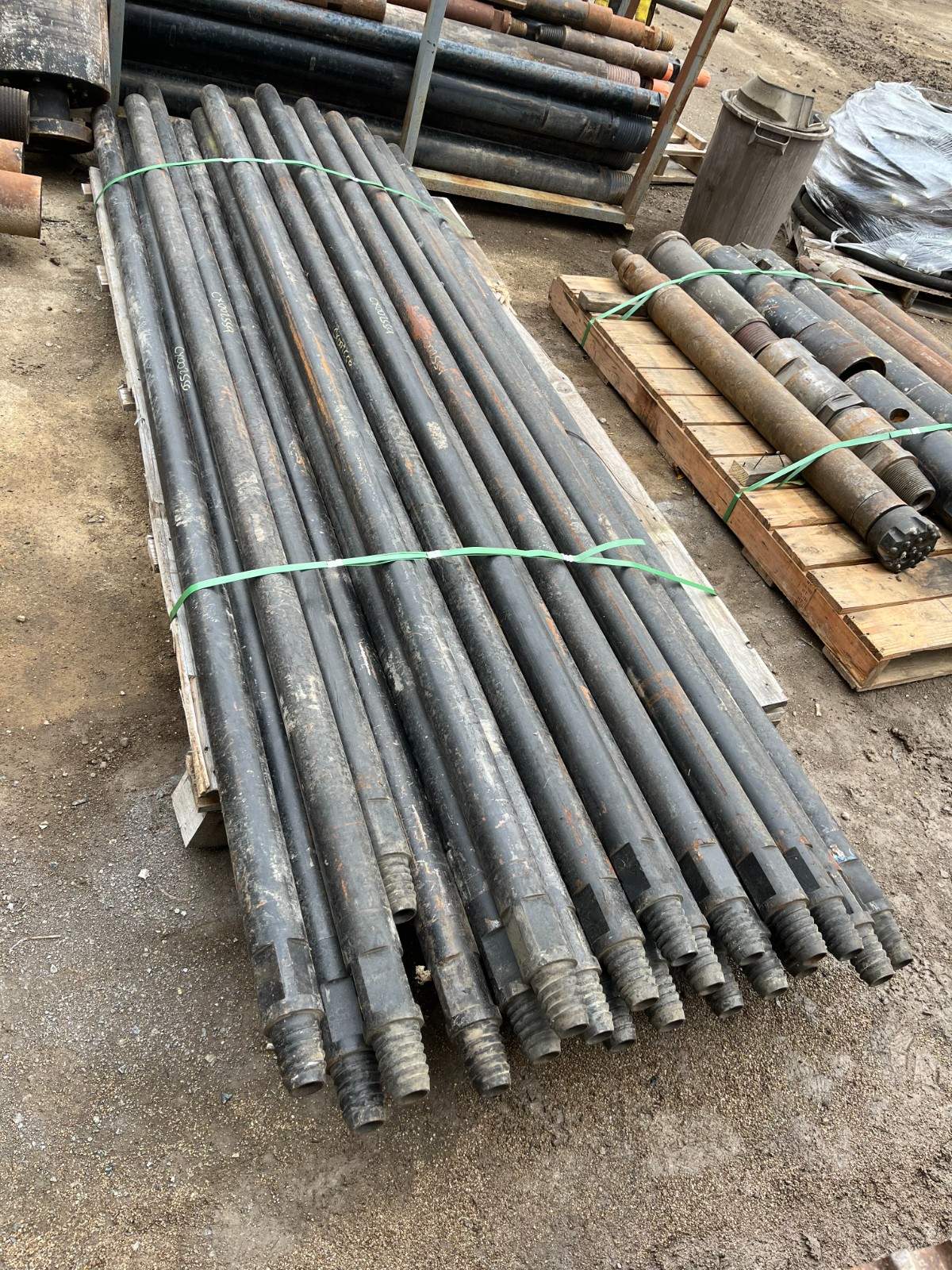

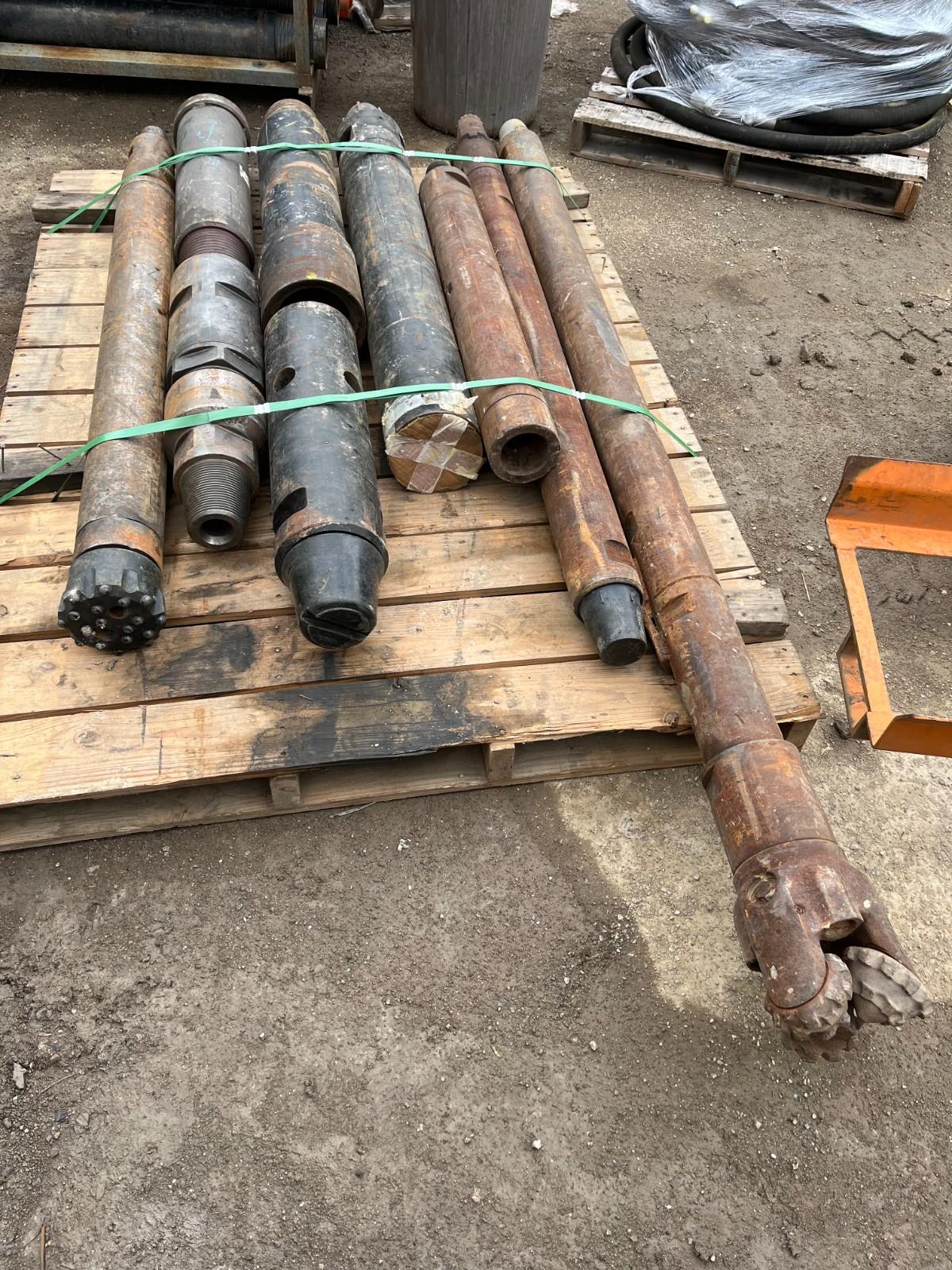

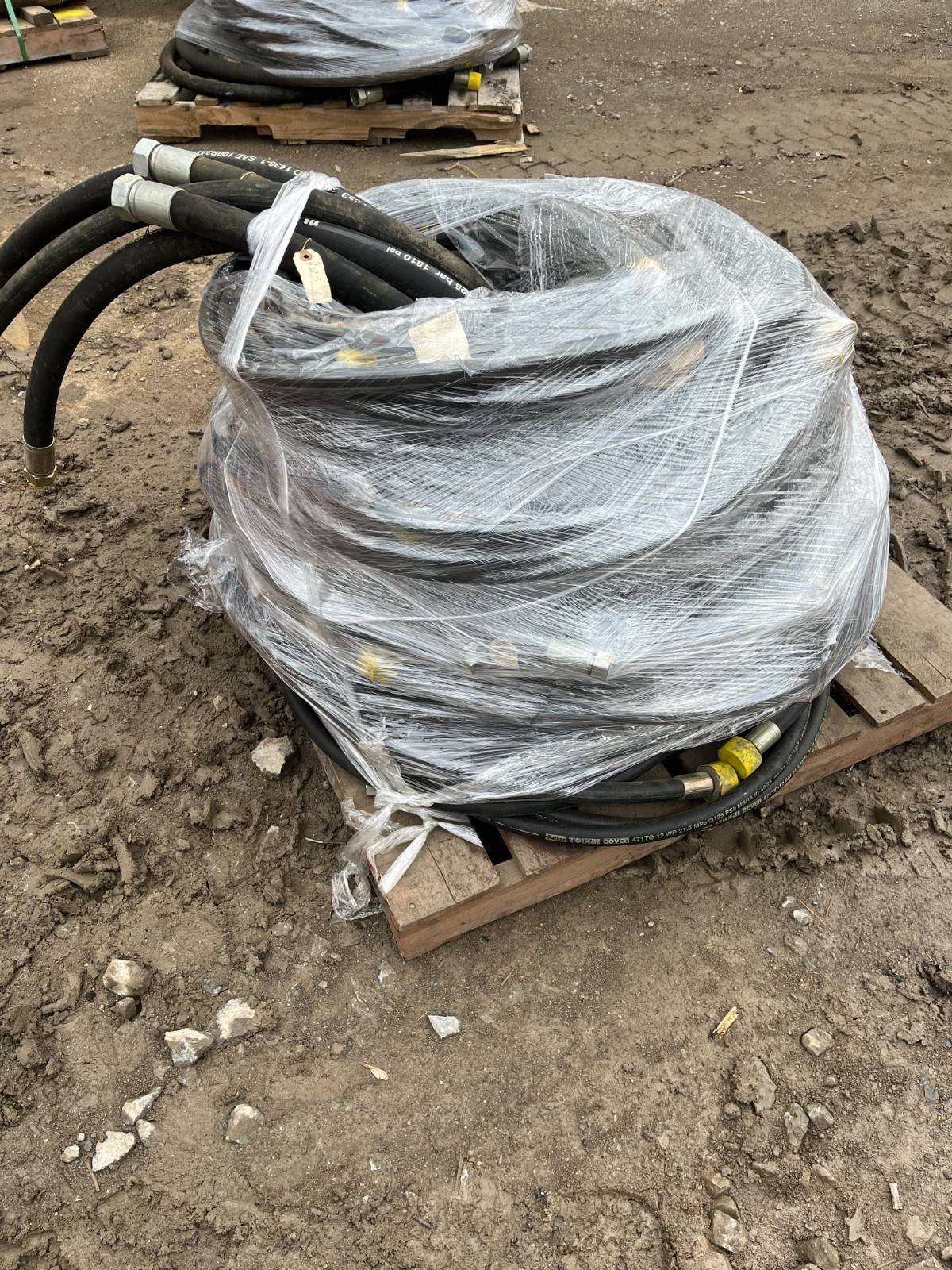

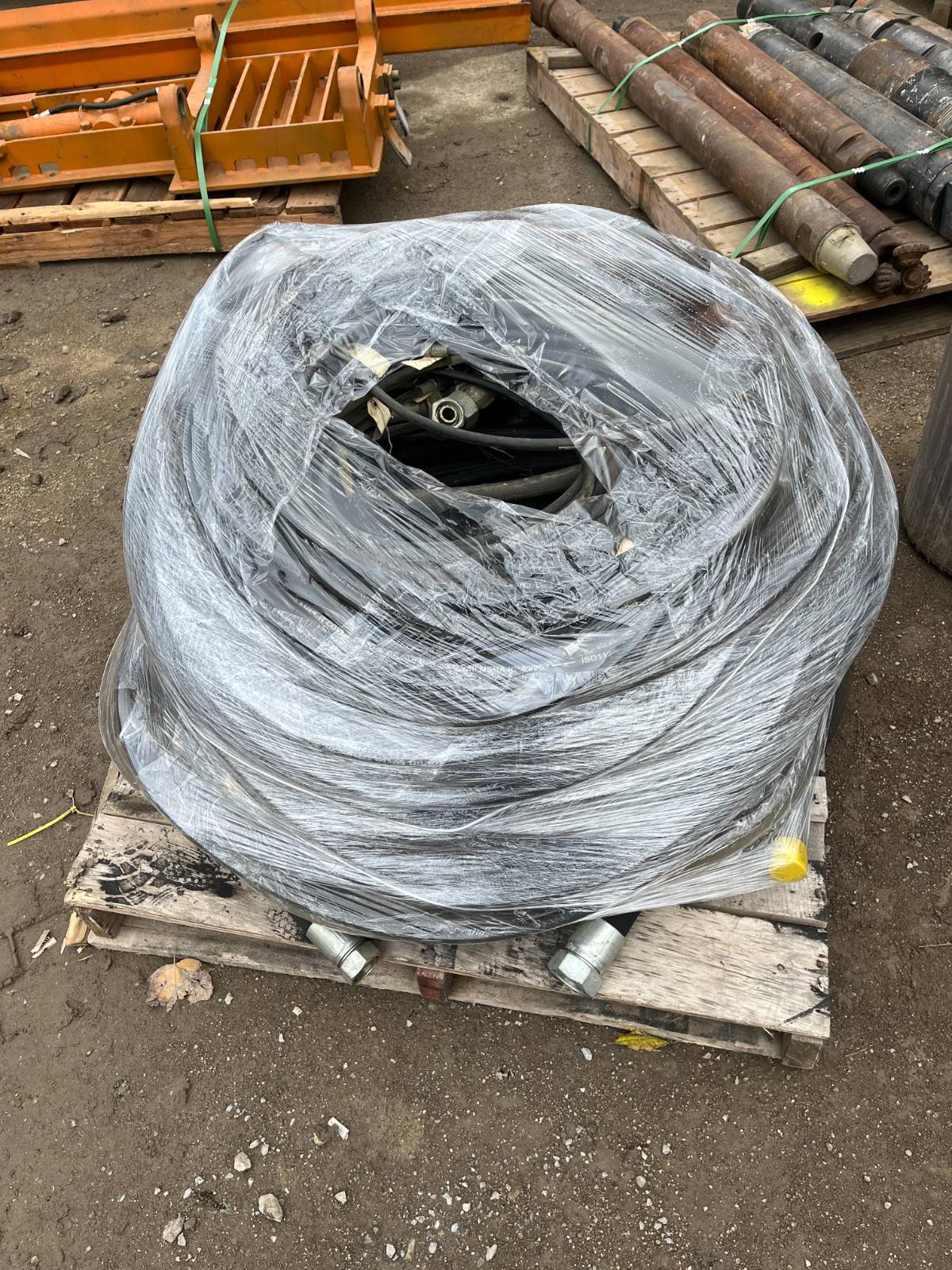

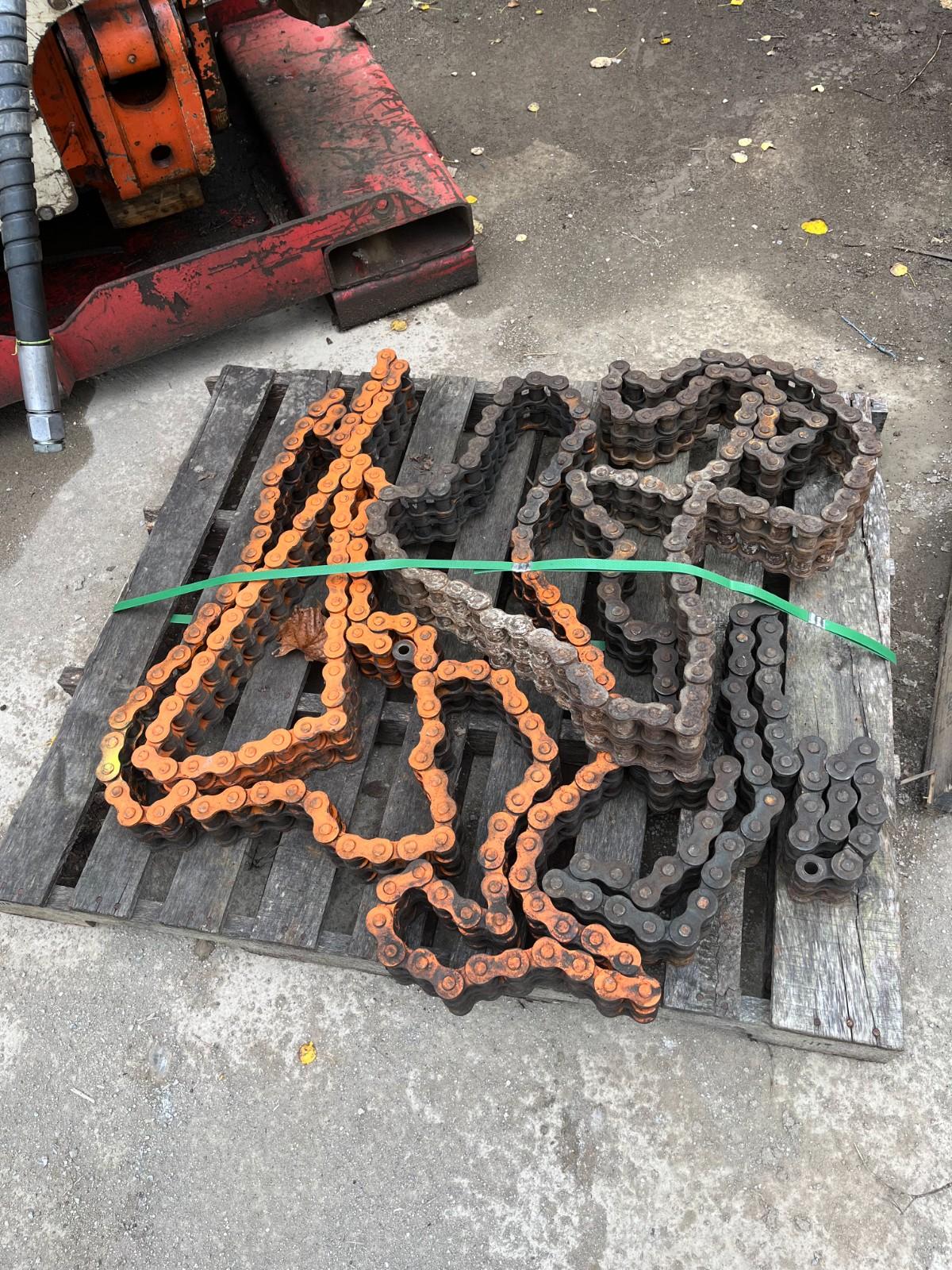

Additional Tooling with Rig Purchase:
